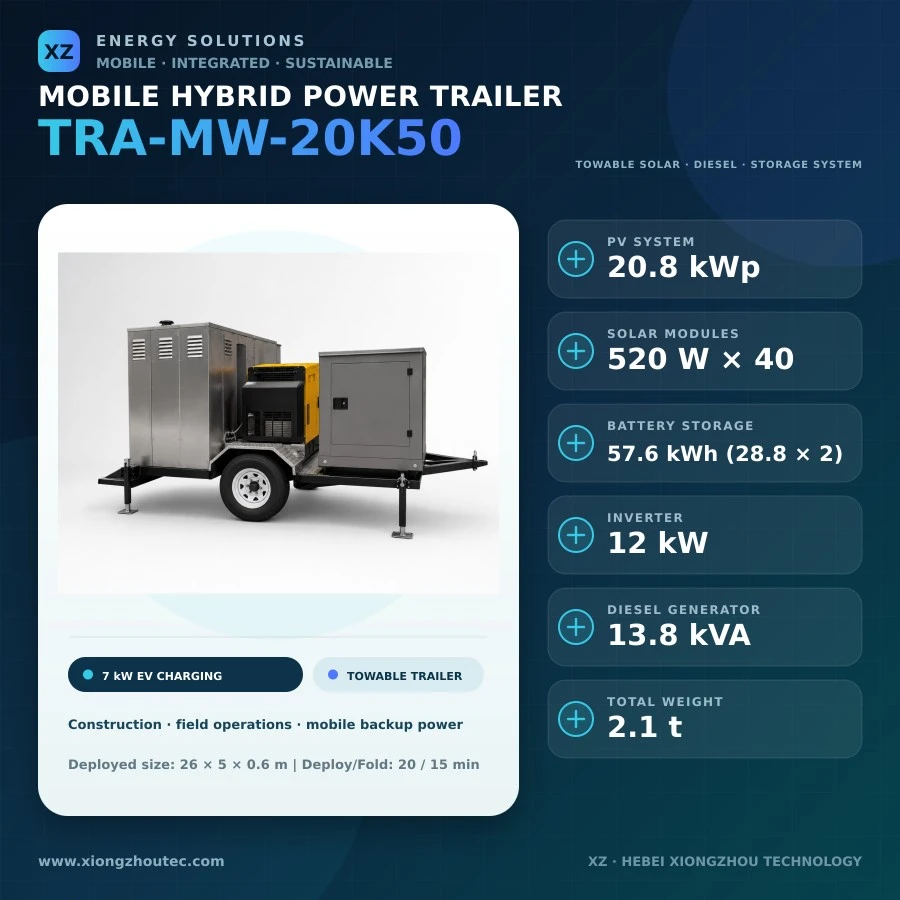

TRA-MW-20K50 Mobile Solar-Storage-Diesel Trailer System
TRA-MW-20K50 Mobile Solar-Storage-Diesel Trailer System

TRA-MW-20K50 Mobile Solar-Storage-Diesel Trailer System

Model: TRA-MW-20K50

INQUIRE NOW NEXT PRODUCTS

PRODUCT FEATURES AND BASIC PARAMETERS

  • Total weight: 2.1 tons
  • Platform type: Towable trailer
  • PV system power: 20.8 kWp
  • Solar modules: 520 W × 20 pcs × 2 = 40 pcs
  • Frame quantity: 1 pc
  • Lithium battery: 28.8 kWh × 2 sets = 57.6 kWh
  • Inverter: 12 kW
  • Diesel generator: 13.8 kVA
  • EV charging station power: 7 kW
  • Wind turbine: Optional
  • Deployed dimensions (L × W × H): 26 × 5 × 0.6 m
  • System occupied area: 130 m²
  • Full deployment time: 20 min
  • Full folding time: 15 min
  • Installation personnel: 1–2 people
