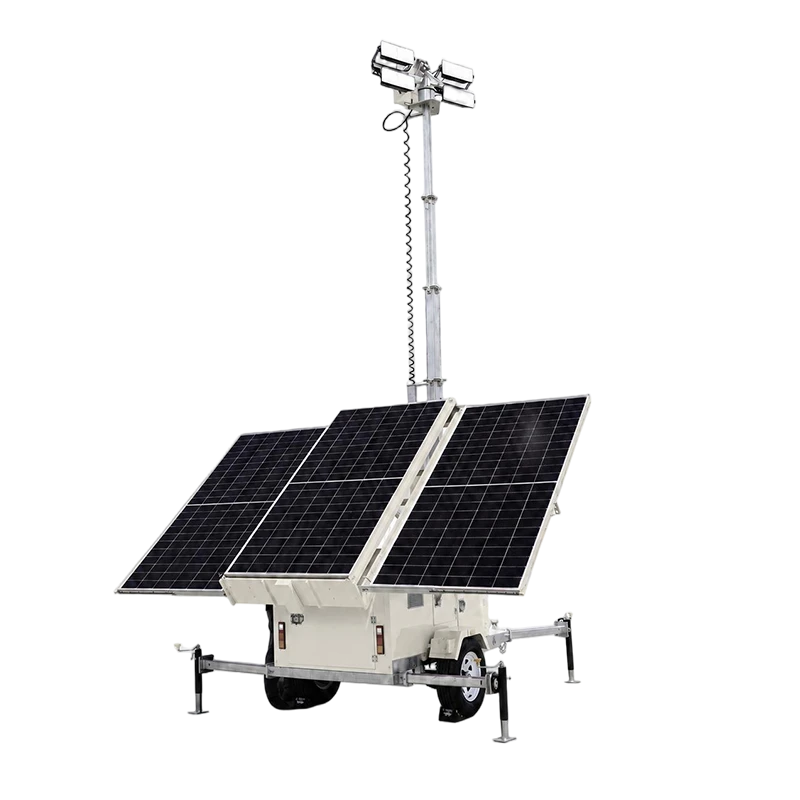

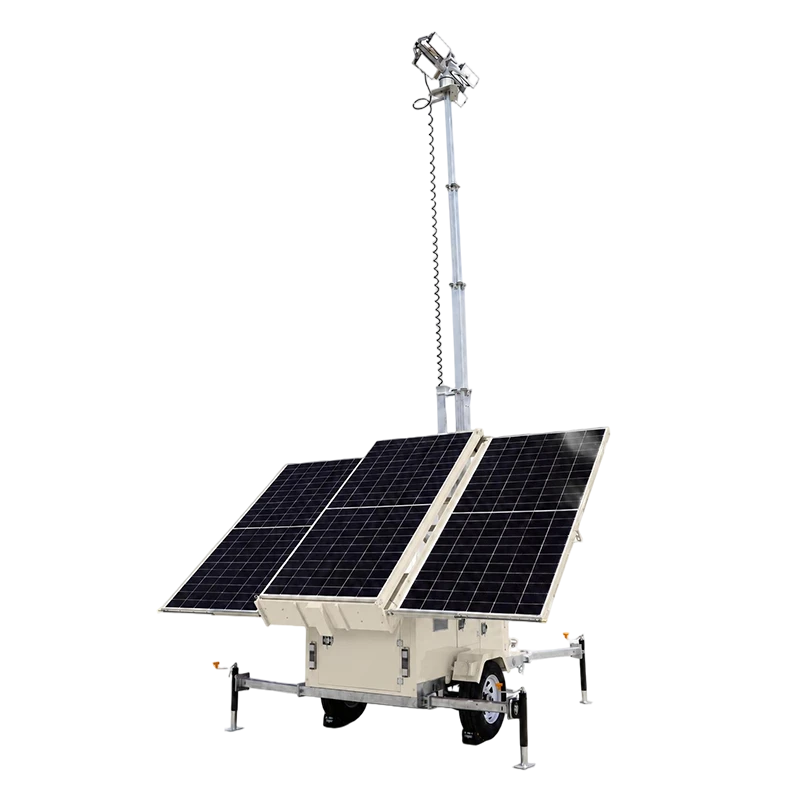

GD9-S Mobile Light Tower

Model: GD9-S

The GD9-S is a 9-meter solar mobile light tower providing greater lighting height and coverage than the GD7-S.

Key advantages: A 9-meter lighting height and approximately 6,000 m² of coverage. Suitable for large construction areas, mines, ports, farms and equipment rental.

GD9-S.pdf

Download

INQUIRE NOW

NEXT PRODUCTS

PRODUCT FEATURES AND BASIC PARAMETERS

Maximum height: 9 m, 7-section mast

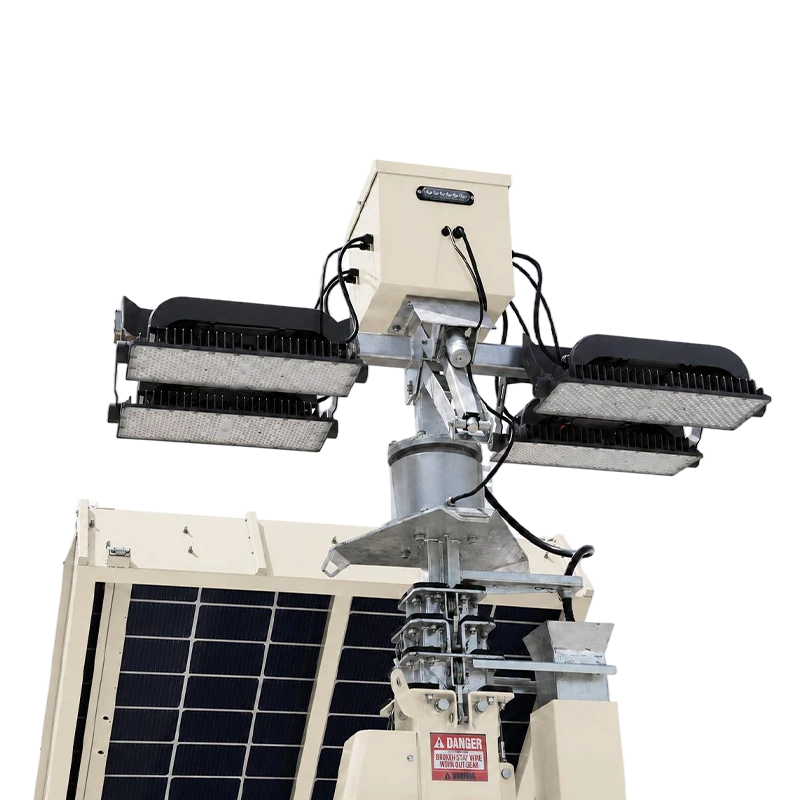

LED power: 4 × 200W = 800W
Luminous flux: 120,000 lm
Lighting coverage: approximately 6,000 m²
Protection rating: IP67
Solar panels: 3 × 595W

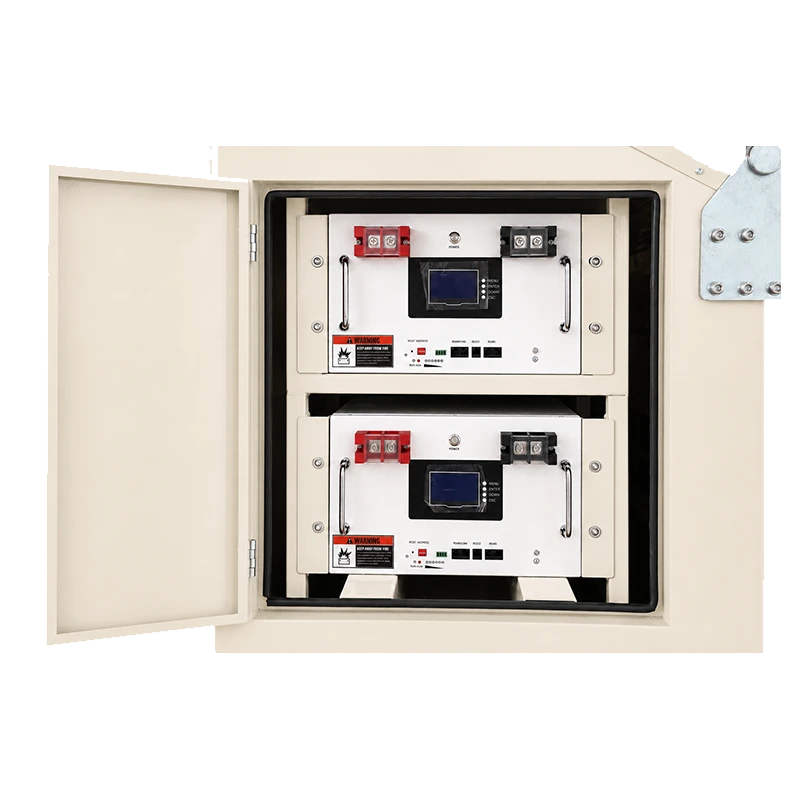

Battery: 51.2V/200Ah LiFePO₄ battery, 10,240Wh
Charging time: 4–6 hours
Runtime: 9–12 hours
Standard mast: manual lifting
Tires: 2 × R14, single-axle trailer without brakes
Operating dimensions: 3,450 × 3,650 × 9,000 mm
40HQ loading quantity: 10 units
Optional: pneumatic or electric mast, inverter, larger battery capacity, brakes, 360° rotating mast and diesel generator
