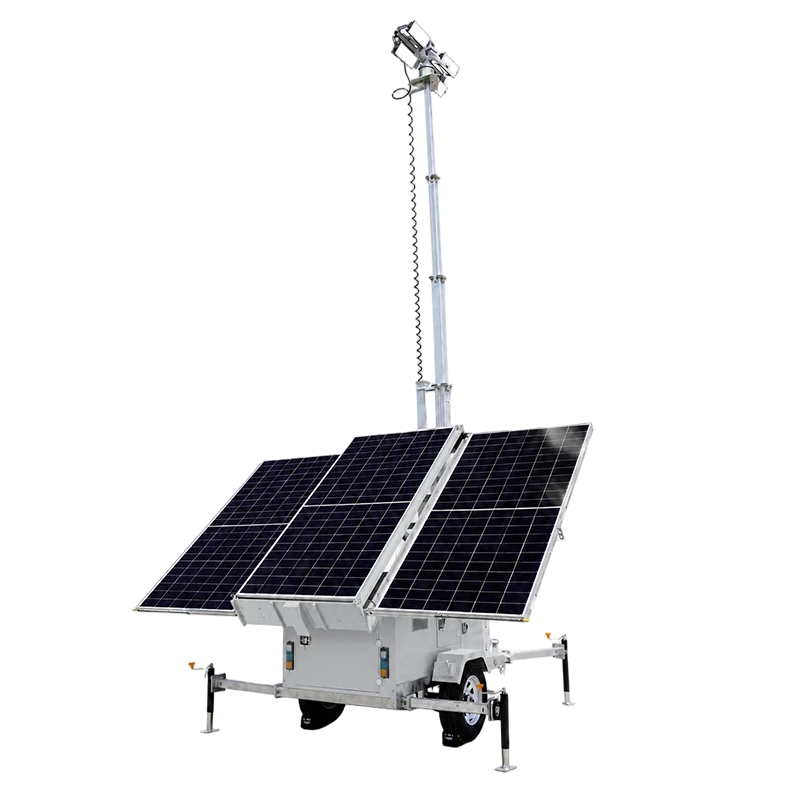

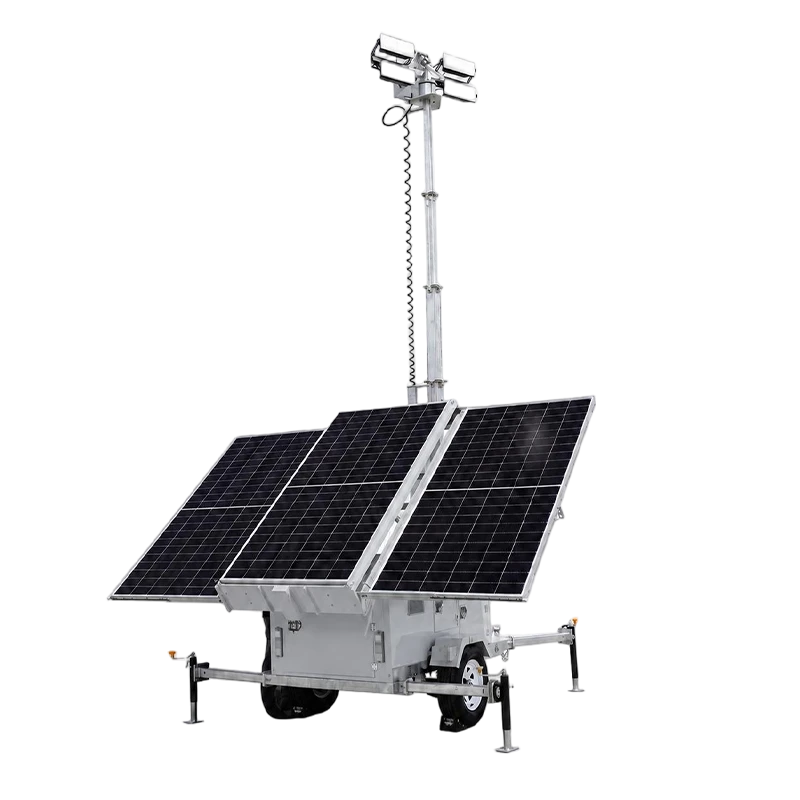

GD9-M Mobile Light Tower
GD9-M Mobile Light Tower
GD9-M Mobile Light Tower
GD9-M Mobile Light Tower
GD9-M Mobile Light Tower
GD9-M Mobile Light Tower

GD9-M Mobile Light Tower

Model: GD9-M

The GD9-M is a 9-meter hybrid mobile light tower designed for customers requiring greater lighting height and reliable continuous operation.

Key advantages: A 9-meter mast, approximately 6,000 m² of lighting coverage and three energy sources: solar power, battery storage and diesel backup.

GD9-M.pdf

Download
INQUIRE NOW NEXT PRODUCTS

PRODUCT FEATURES AND BASIC PARAMETERS

  • Maximum height: 9 m, 7-section mast

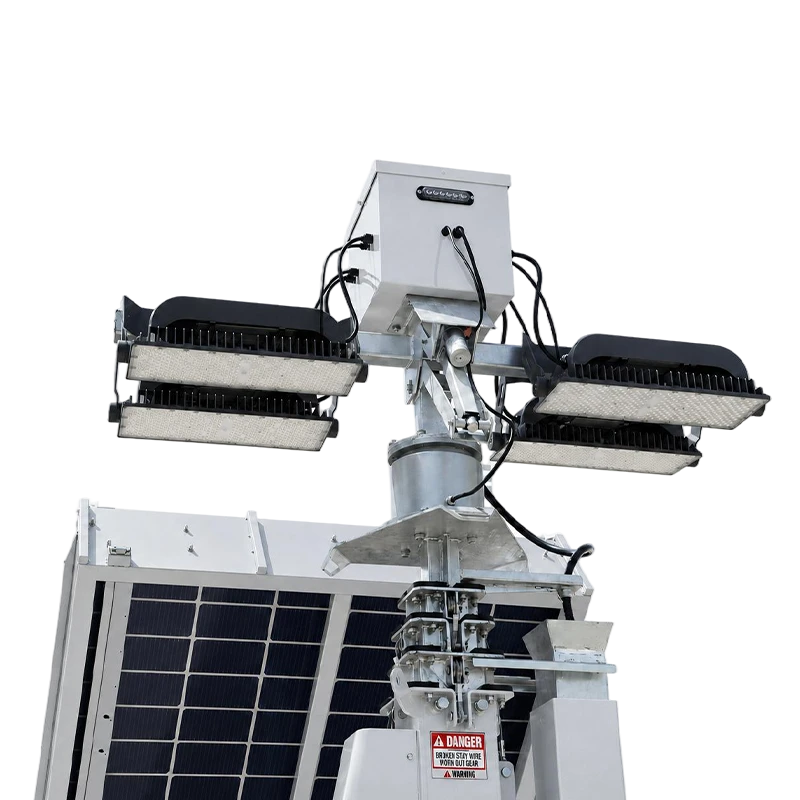

  • LED power: 4 × 200W = 800W
  • Luminous flux: 120,000 lm
  • Lighting coverage: approximately 6,000 m²
  • Protection rating: IP67
  • Solar panels: 3 × 595W

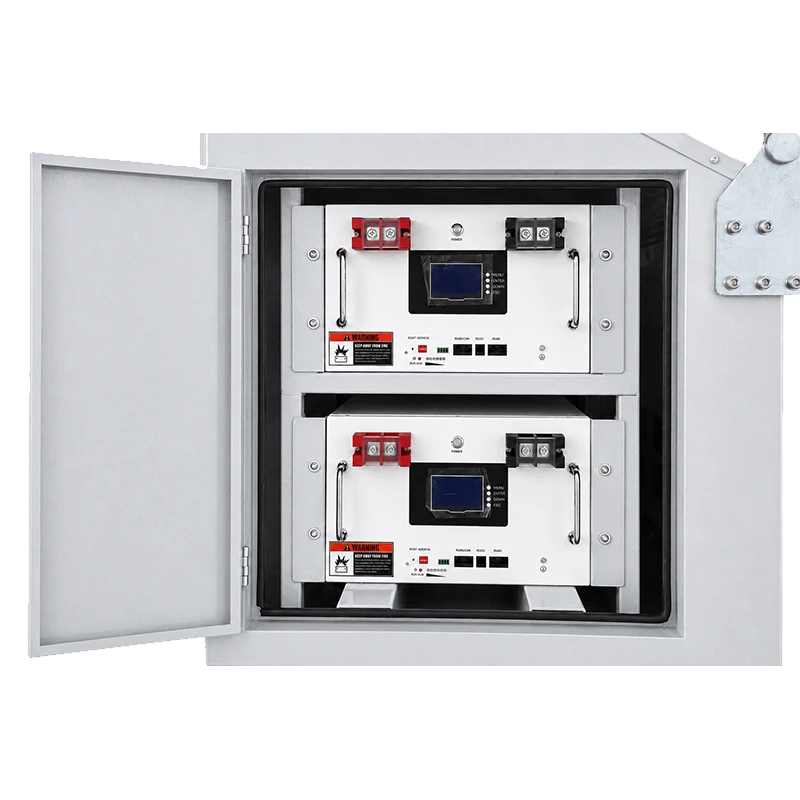

  • Battery: 51.2V/200Ah LiFePO₄ battery, 10,240Wh
  • Diesel generator: 5kW Changchai engine
  • Fuel tank: 16 L
  • Generator runtime: more than 12 hours
  • Charging time: 4–6 hours
  • Battery runtime: 9–12 hours
  • Mast options: manual, pneumatic or electric telescopic

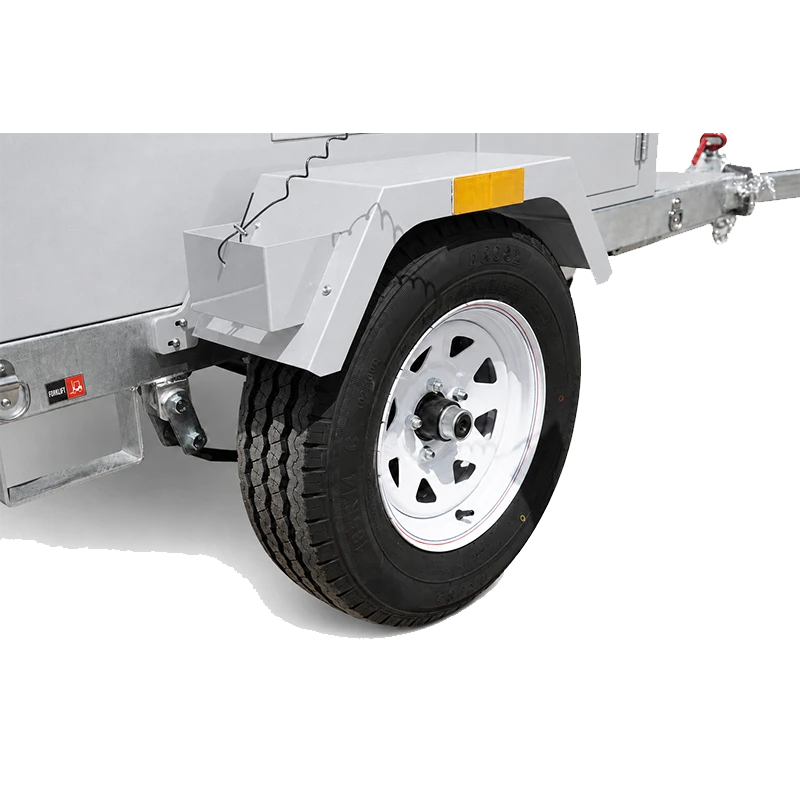

  • Tires: 2 × R14 with handbrake
  • Operating dimensions: 5,500 × 3,650 × 9,000 mm
  • 40HQ loading quantity: 6 units
