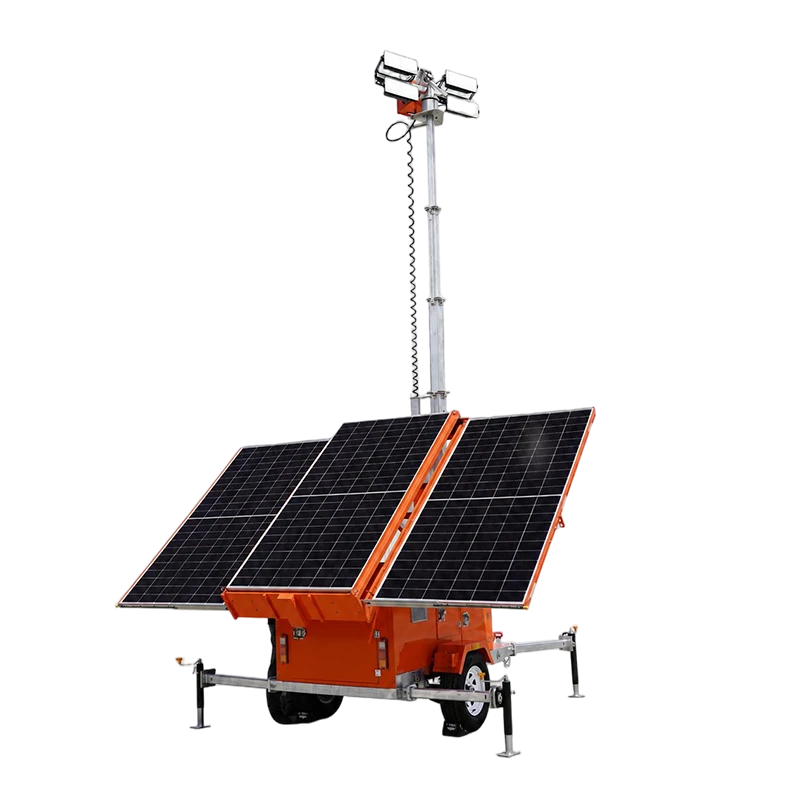

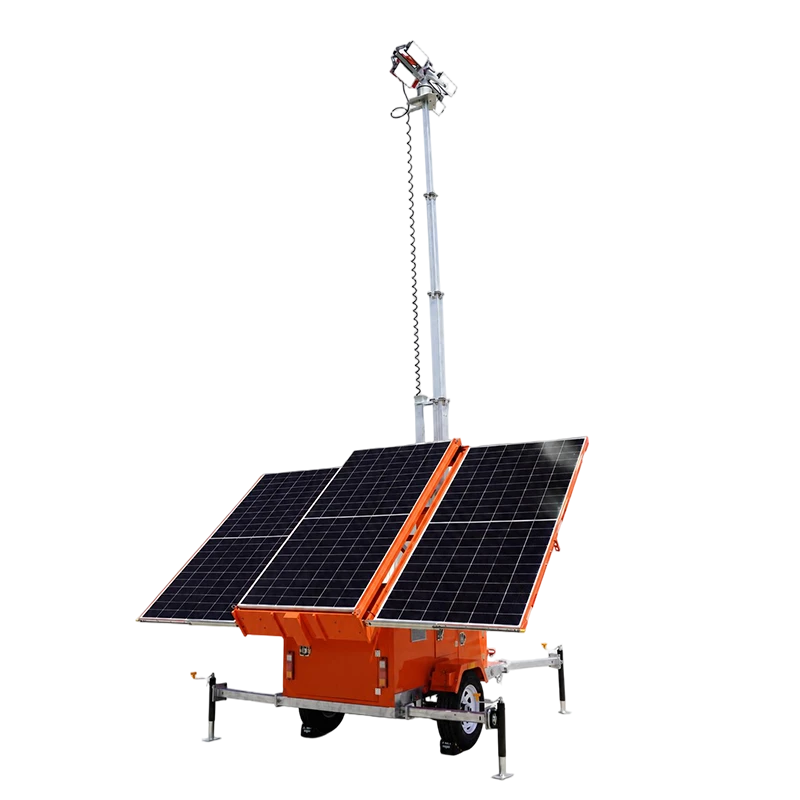

Model: GD9-H

The GD9-H is a long-runtime, 9-meter hybrid mobile light tower and a recommended configuration for mining and large engineering projects.

Key advantages: Higher solar power, extended battery runtime and diesel backup. Suitable for mines, ports, forestry projects and 24-hour operations.

GD9-H.pdf

Download
INQUIRE NOW NEXT PRODUCTS

PRODUCT FEATURES AND BASIC PARAMETERS

  • Maximum height: 9 m, 7-section mast

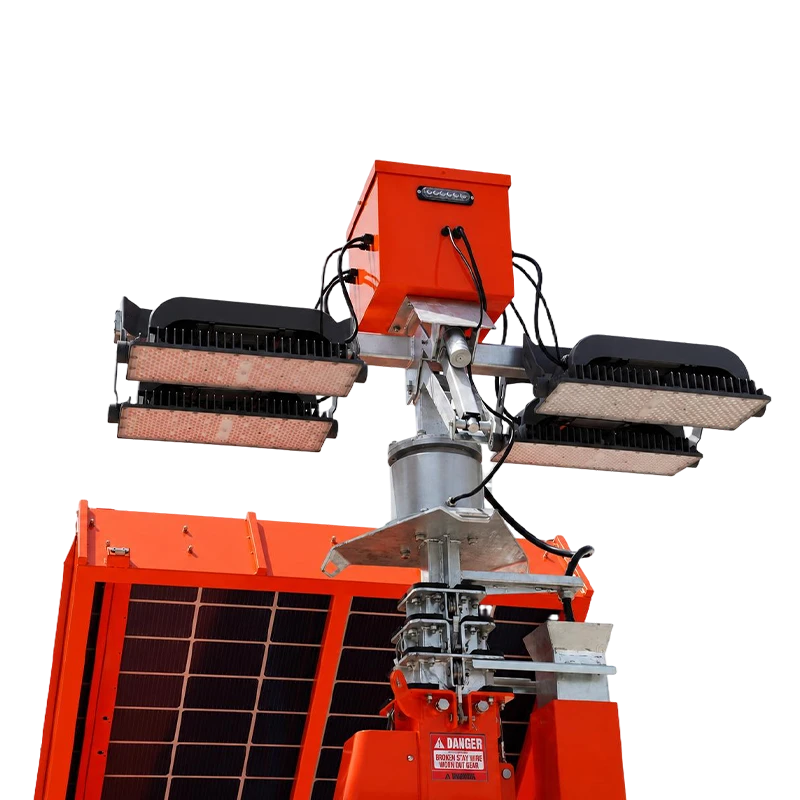

  • LED power: 4 × 200W = 800W
  • Luminous flux: 120,000 lm
  • Lighting coverage: approximately 6,000 m²
  • Lamp adjustment: 0–90° vertically and 355° horizontally
  • Protection rating: IP67
  • Solar panels: 3 × 720W = 2,160W

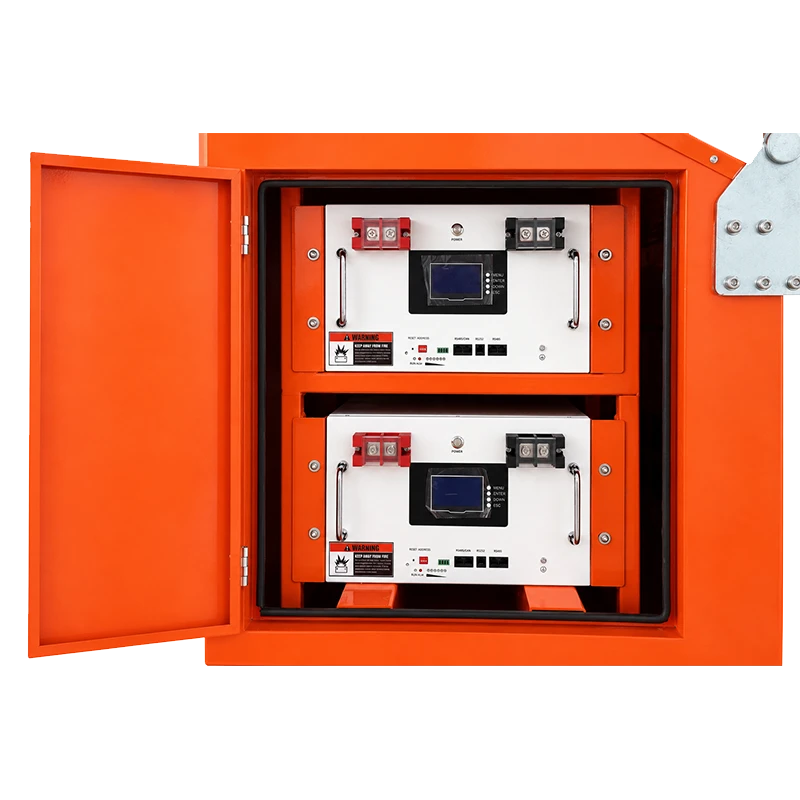

  • Battery: 51.2V/314Ah LiFePO₄ battery, 16,000Wh
  • Diesel generator: 5kW Changchai engine
  • Fuel tank: 16 L
  • Generator runtime: more than 12 hours
  • Charging time: 5–7 hours
  • Battery runtime: 13–18 hours
  • Mast options: manual, pneumatic or electric telescopic

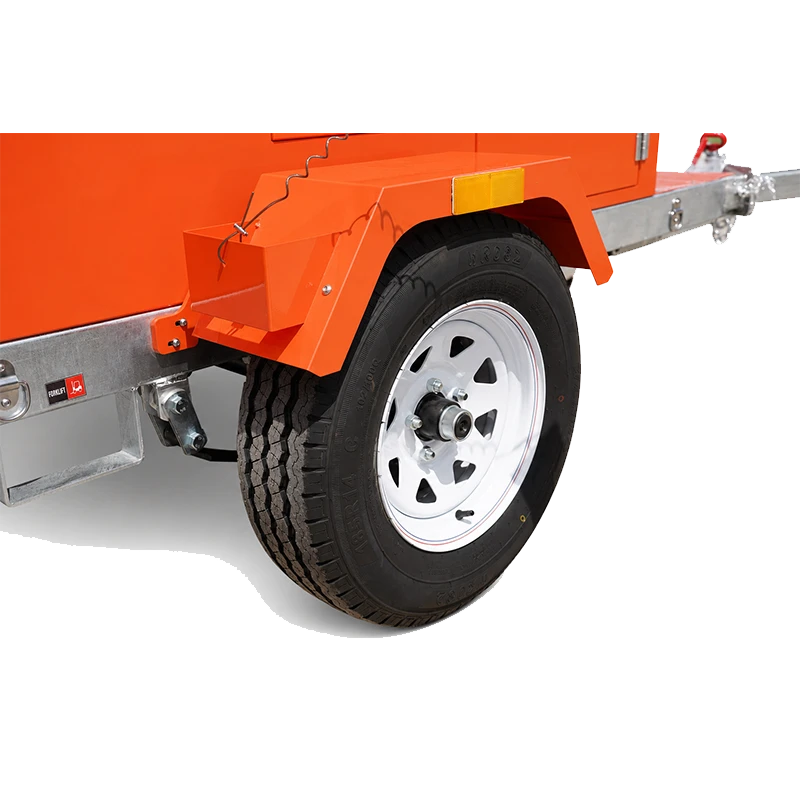

  • Tires: 2 × R14 with handbrake
  • Operating dimensions: 5,500 × 3,650 × 9,000 mm
  • 40HQ loading quantity: 5 units
