GD7-M Mobile Light Tower
GD7-M Mobile Light Tower
GD7-M Mobile Light Tower
GD7-M Mobile Light Tower
GD7-M Mobile Light Tower
GD7-M Mobile Light Tower

GD7-M Mobile Light Tower

Model: GD7-M

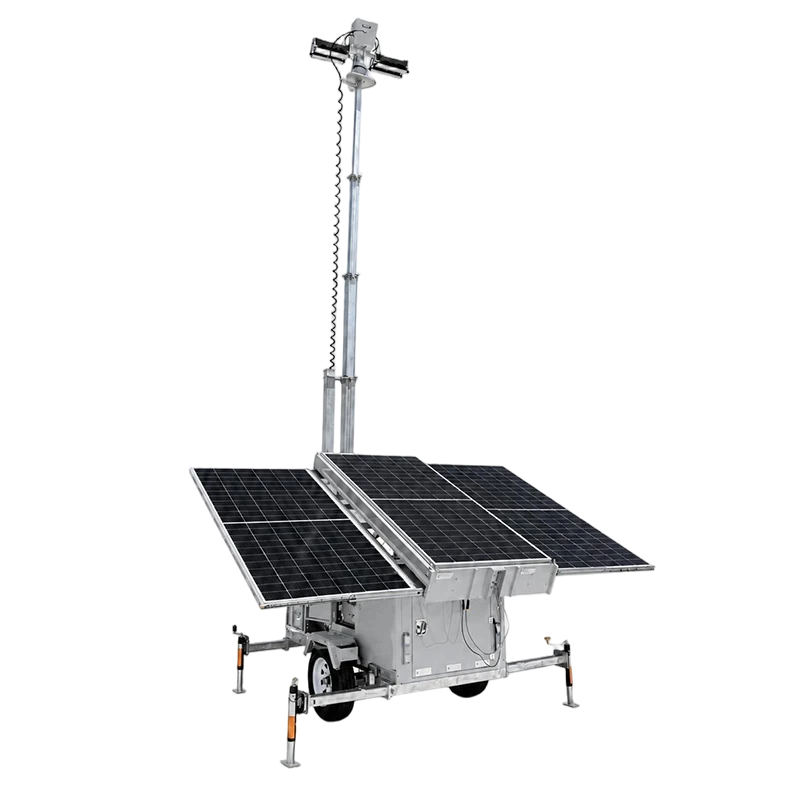

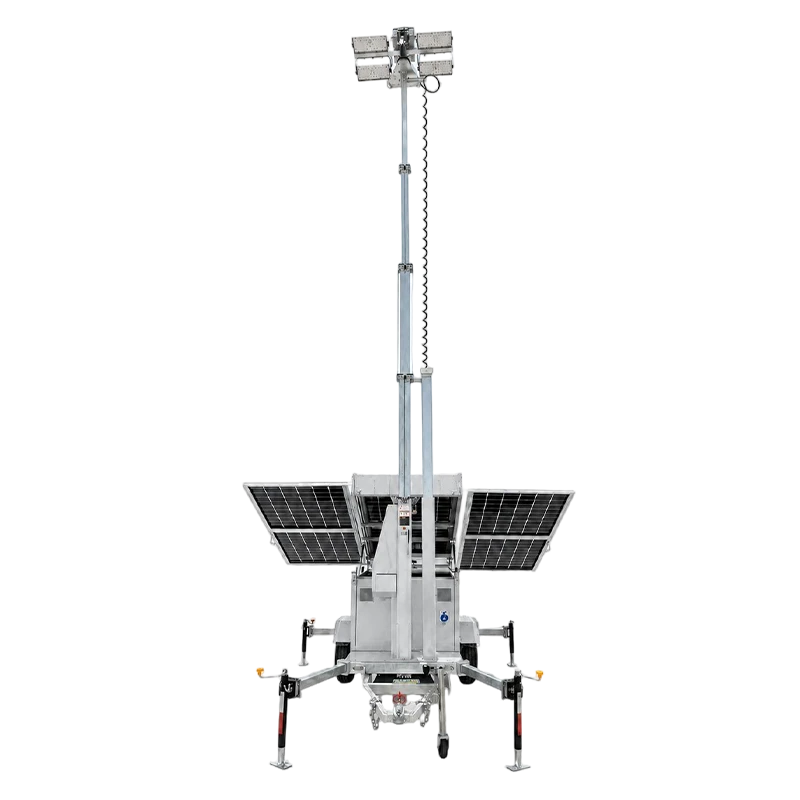

The GD7-M is a 7-meter mobile light tower combining solar power, battery storage and diesel backup.

Key advantages: Solar energy is used as the primary power source, while the diesel generator provides backup during cloudy or rainy weather.

GD7-M.pdf

Download
INQUIRE NOW NEXT PRODUCTS

PRODUCT FEATURES AND BASIC PARAMETERS

  • Maximum height: 7 m, 5-section mast

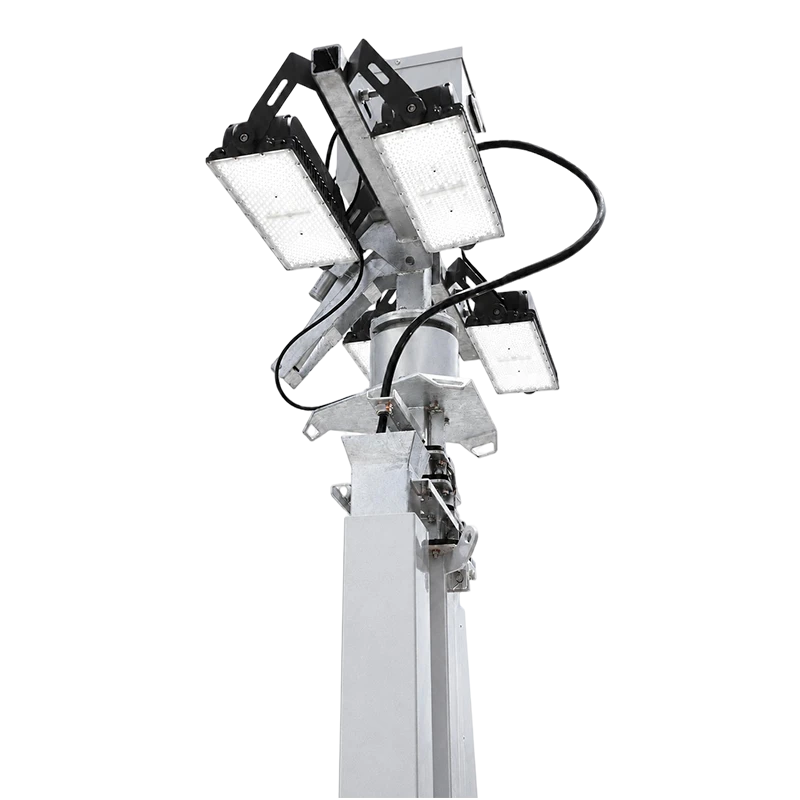

  • LED power: 4 × 150W = 600W
  • Luminous flux: 90,000 lm
  • Lighting coverage: approximately 4,500 m²
  • Protection rating: IP67
  • Solar panels: 3 × 595W
  • Battery: 51.2V/200Ah LiFePO₄ battery, 10,240Wh
  • Diesel generator: 5kW Changchai engine
  • Fuel tank: 16 L
  • Generator runtime: more than 12 hours
  • Charging time: 4–6 hours
  • Battery runtime: 12–15 hours
  • Mast options: manual, pneumatic or electric telescopic
  • Tires: 2 × R14 with handbrake
  • Operating dimensions: 5,500 × 3,650 × 7,000 mm
  • 40HQ loading quantity: 8 units
