GD7-H Mobile Light Tower
GD7-H Mobile Light Tower
GD7-H Mobile Light Tower
GD7-H Mobile Light Tower
GD7-H Mobile Light Tower
GD7-H Mobile Light Tower

GD7-H Mobile Light Tower

Model: GD7-H

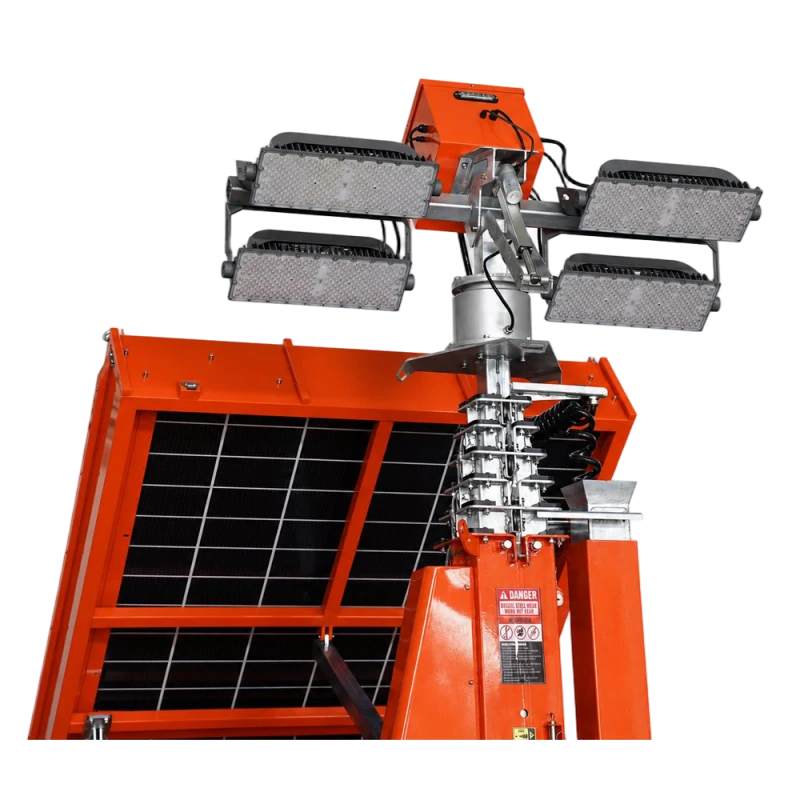

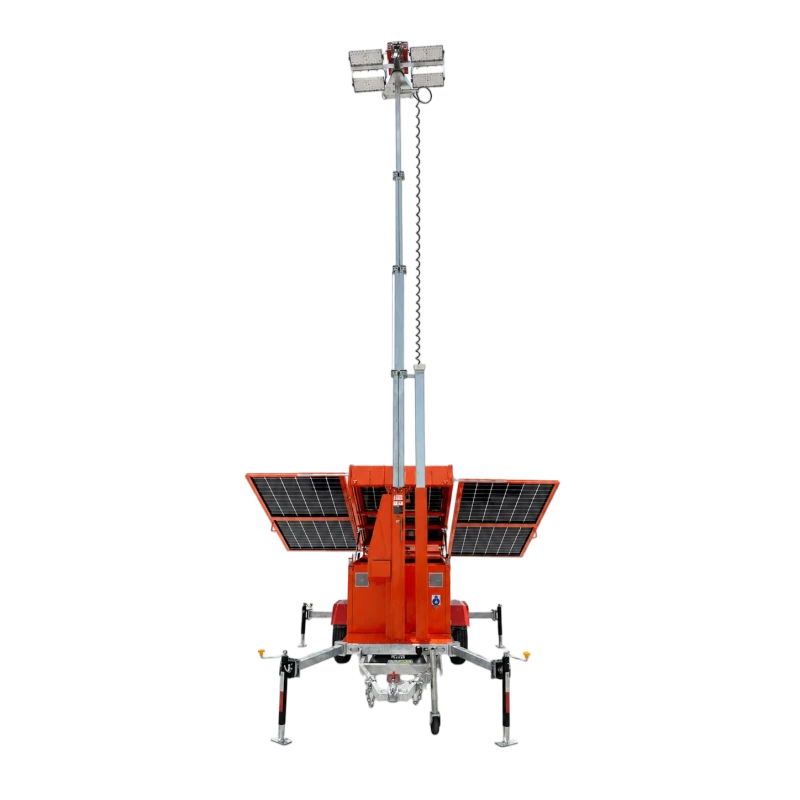

The GD7-H is a long-runtime, 7-meter hybrid mobile light tower equipped with a larger LiFePO₄ battery than the GD7-M.

Key advantages: A larger battery provides longer operation, while the diesel generator ensures reliable backup during unstable weather.

GD7-H.pdf

Download
INQUIRE NOW NEXT PRODUCTS

PRODUCT FEATURES AND BASIC PARAMETERS

  • Maximum height: 7 m, 5-section mast

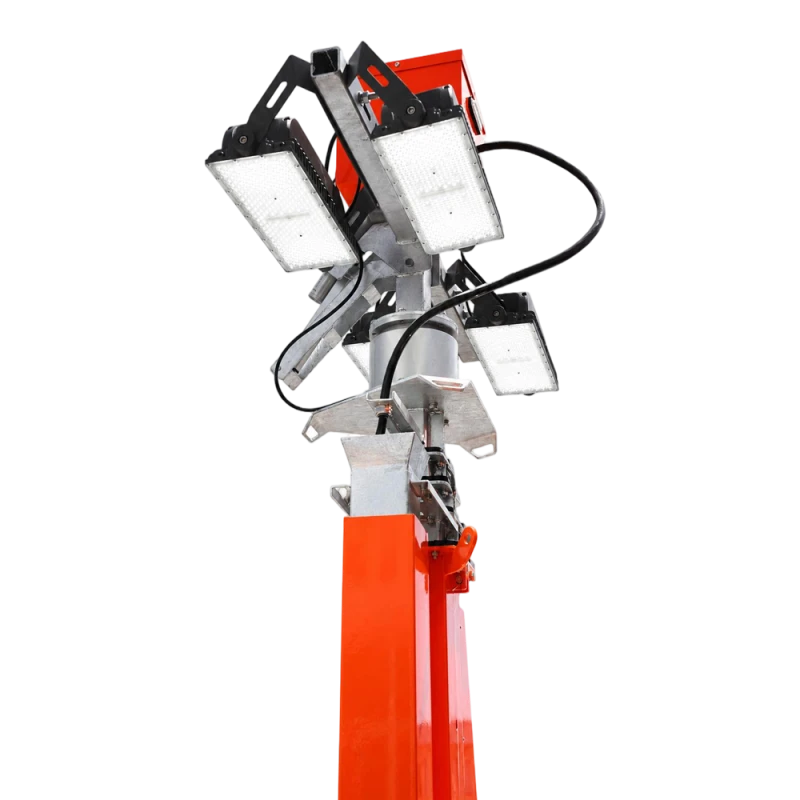

  • LED power: 4 × 150W = 600W
  • Luminous flux: 90,000 lm
  • Lighting coverage: approximately 4,500 m²
  • Lamp adjustment: 0–90° vertically and 355° horizontally
  • Protection rating: IP67
  • Solar panels: 3 × 595W = 1,785W
  • Battery: 51.2V/314Ah LiFePO₄ battery, 16,000Wh
  • Diesel generator: 5kW Changchai engine
  • Fuel tank: 16 L
  • Generator runtime: more than 12 hours
  • Charging time: 5–9 hours
  • Battery runtime: 15–24 hours
  • Mast options: manual, pneumatic or electric telescopic
  • Tires: 2 × R14 with handbrake
  • Operating dimensions: 5,500 × 3,650 × 7,000 mm
  • 40HQ loading quantity: 8 units
