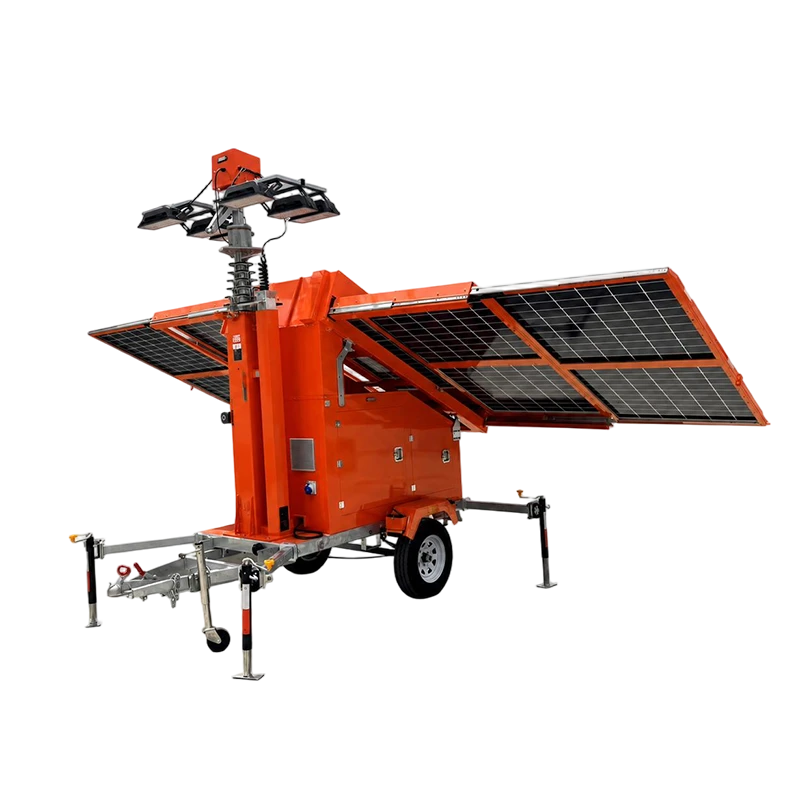

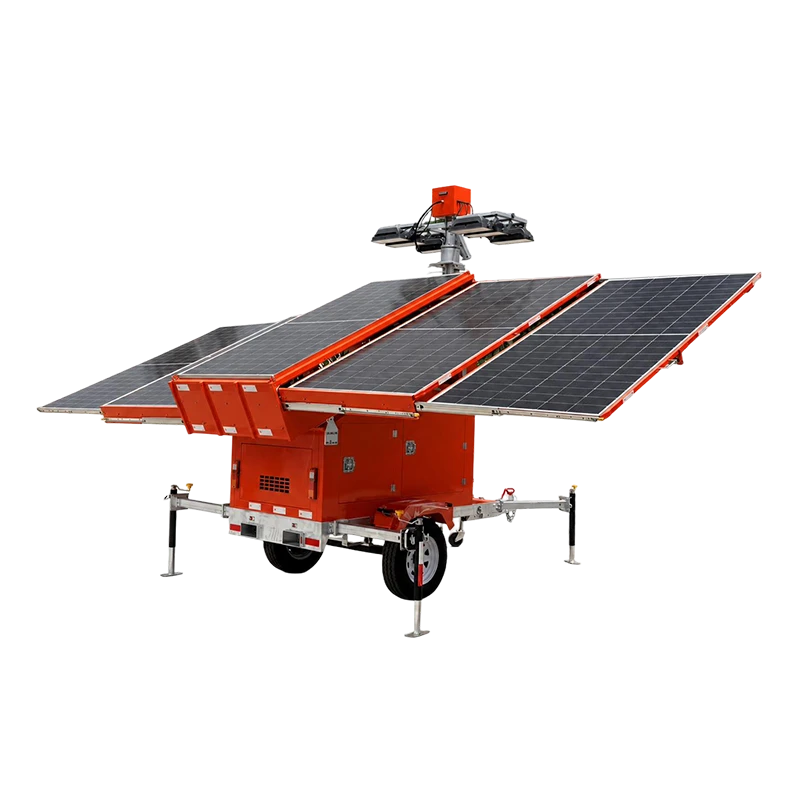

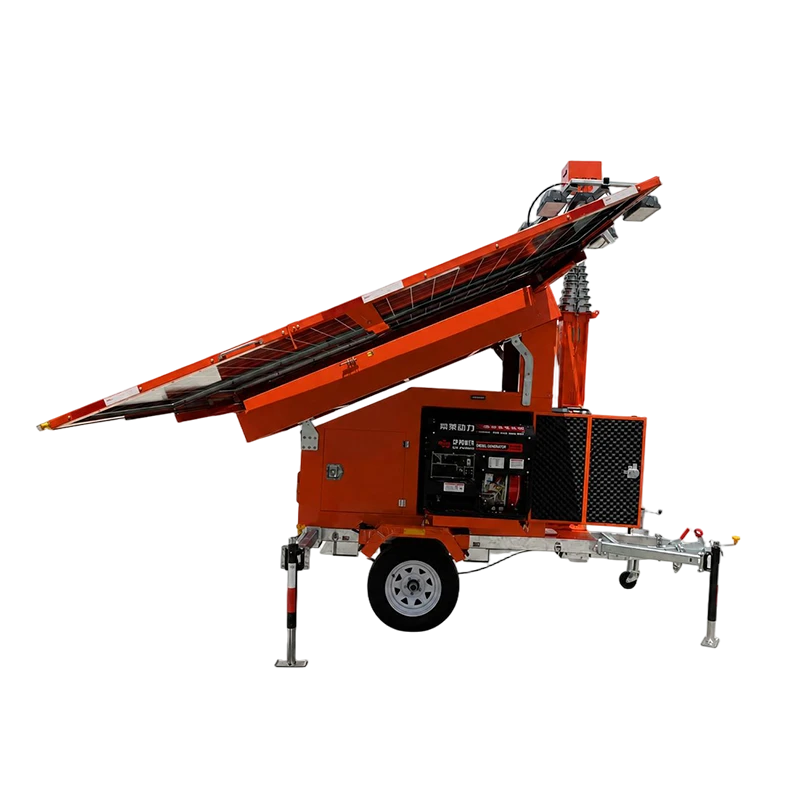

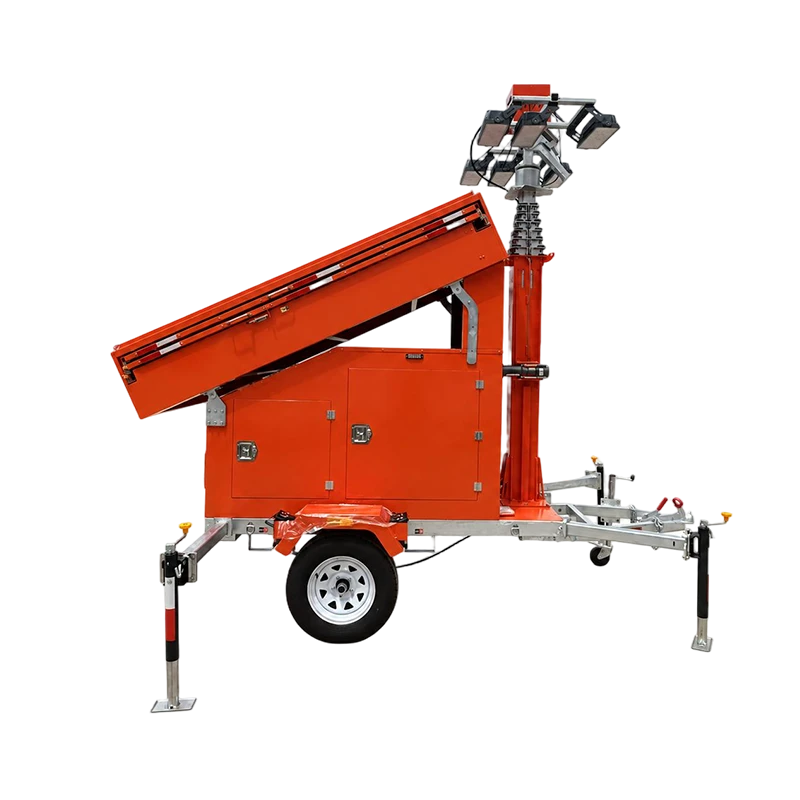

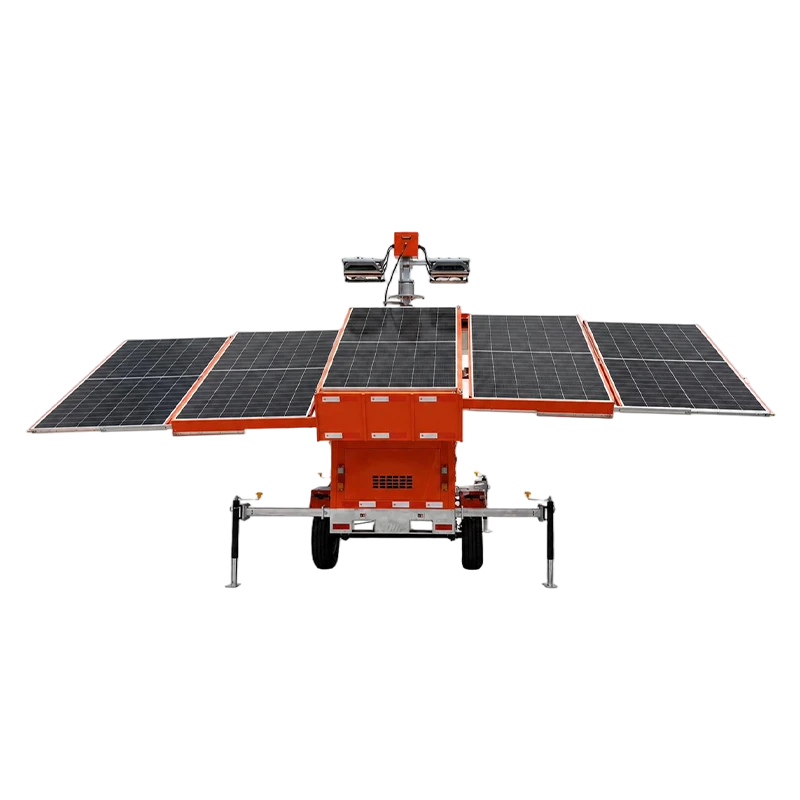

GD12-H Mobile Light Tower

Model: GD12-H

The GD12-H is a high-configuration, 12-meter hybrid mobile light tower offering a larger battery system and extended operating time.

Key advantages: A 12-meter mast, 32,000Wh battery system, six LED lamps and diesel backup make it suitable for large mines, ports and major engineering projects.

GD12-H.pdf

Download

INQUIRE NOW

NEXT PRODUCTS

PRODUCT FEATURES AND BASIC PARAMETERS

Maximum height: 12 m, 8-section electric telescopic mast
LED power: 6 × 200W = 1,200W
Luminous flux: 180,000 lm
Lighting coverage: approximately 8,000 m²
Lamp adjustment: 0–90° vertically and 355° horizontally
Protection rating: IP67
Solar panels: 5 × 595W = 2,975W
Battery: 2 × 51.2V/314Ah LiFePO₄ batteries, 32,000Wh
Diesel generator: 5kW Changchai engine
Fuel tank: 16 L
Generator runtime: more than 12 hours
Charging time: 5–10 hours
Battery runtime: 15–24 hours
Mast type: electric telescopic
Tires: 2 × R14 with handbrake
Operating dimensions: 3,750 × 7,300 × 12,000 mm
40HQ loading quantity: 4 units
